What Is an LED Cross Star Light for Facade Lighting?

You want to add a unique, elegant touch to a building's facade, but most lights only create a simple spot or a plain wash. Your design needs something more distinctive to stand out.

An LED cross star light is a compact architectural fixture that uses four precision lenses to project a crisp, four-pointed star or cross-shaped beam of light. It’s the perfect tool for adding a pattern of decorative accents to facades, columns, and windows.

I love using these fixtures as a design surprise. They turn a flat, boring wall into a canvas of light and shadow. Instead of just flooding a surface with light, you are strategically placing beautiful, geometric patterns. This simple fixture can elevate a project from ordinary to extraordinary. Let’s look at what makes it work so well.

What Are Its Key Features and Specifications?

You've found a unique light, but you're unsure if it fits your project's technical needs. Choosing the wrong voltage or control type can cause major headaches for your installation team.

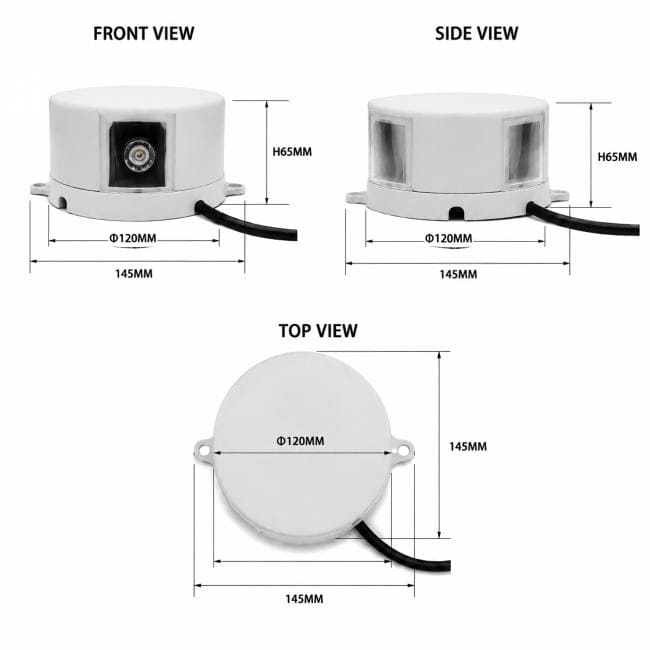

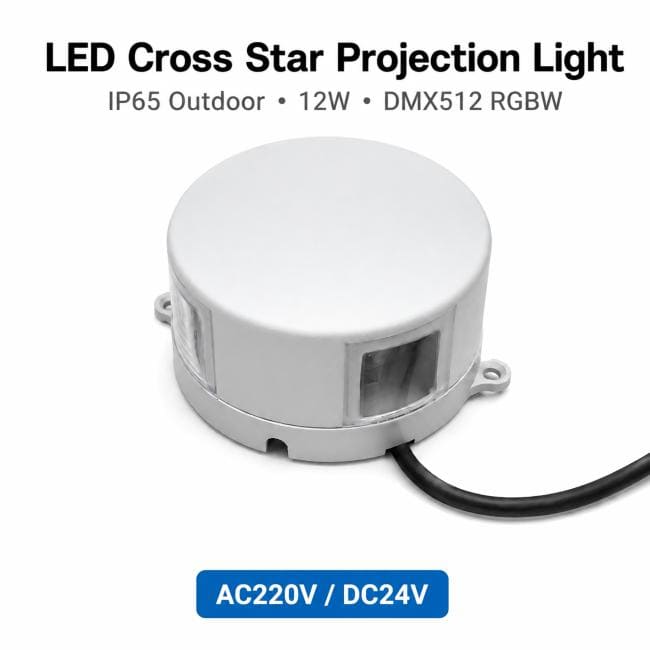

This is a 12-watt fixture built from tough die-cast aluminum, available in AC220V for simple installs or DC24V for complex systems. It comes in single colors or with full DMX512 RGBW control, all housed in a compact IP65 waterproof body.

Power, Control, and Color Flexibility

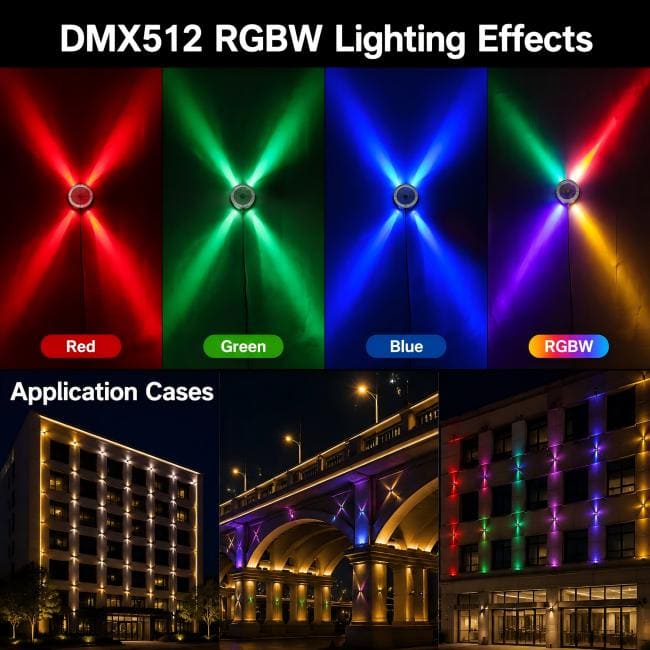

This 12W fixture packs a surprising punch thanks to its high-efficiency LEDs. The choice between AC220V and DC24V is a huge plus for contractors. For a few simple accents on a wall, the AC220V version is perfect—just wire it directly to mains power. For larger, synchronized projects, the DC24V version with DMX512 control is the way to go. This lets a lighting designer create dynamic scenes where dozens of stars change color and intensity together. The DMX512 RGBW option is my favorite, as it provides rich, saturated colors as well as a pure, high-quality white for classic looks.

Built for the Outdoors

The construction is exactly what I look for in a reliable outdoor fixture. The body is die-cast aluminum, which is not only strong but also serves as an excellent heat sink, pulling heat away from the LEDs to ensure a long life. The front is sealed with tempered glass, which will not yellow or become brittle in the sun like plastic can. The whole unit is sealed to an IP65 rating, meaning it's completely protected from dust and rain.

How Do You Choose the Right Beam Angle for a Cross Effect?

You installed a cross star light, but the effect is disappointing. The "star" is a blurry mess, or it's so small you can barely see it from the street.

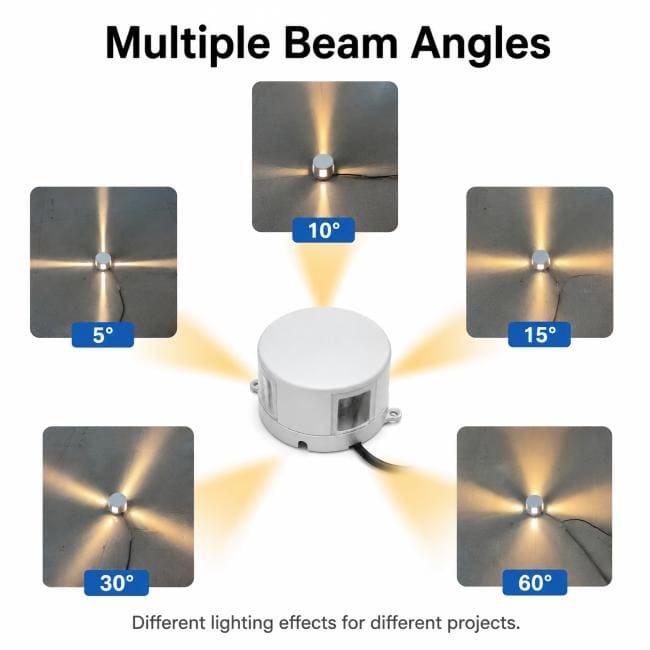

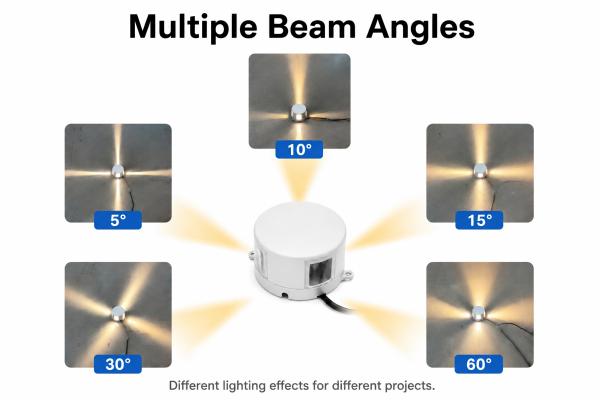

For a sharp, defined star visible from far away (3–6 meters), choose a narrow 5° or 10° beam. For a softer, wider cross effect at close range (1–2 meters), a 30° beam is the better choice.

The Science of the Beam Angle

The beam angle of a light is determined by its lens. A narrow-angle lens, like a 5°, concentrates all of the light's energy into a tight, powerful beam. This allows the light to travel a long distance and maintain a crisp, sharp shape. A wide-angle lens, like a 30° or 60°, spreads the light out. This reduces the projection distance but creates a larger, softer effect. Choosing correctly is the key to getting the look you want.

Practical Application

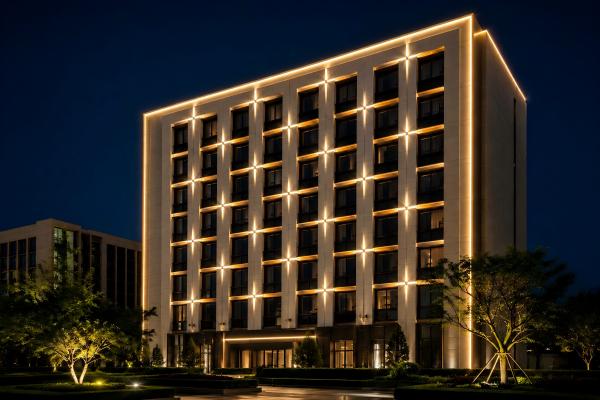

On a recent high-rise hotel project, we used these lights to add detail to the facade. For the lower three floors, we used 30° beam angles to create a pattern of large, soft crosses. They were placed about 1.5 meters from the surface. For the windows on the 10th and 11th floors, we used 10° beam angles. This produced a much sharper, more intense star effect that was clearly visible from the ground, even though the lights were projected over 5 meters. The combination of different beam angles added a wonderful sense of depth to the building's lighting scheme.

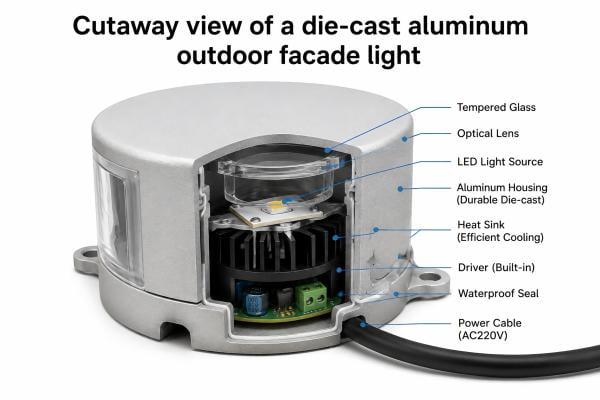

How Is It Constructed for Outdoor Durability?

You worry that a fancy decorative light will be the first thing to fail in a storm. Water damage and corrosion are constant threats that can ruin a project and your reputation.

This fixture is built to last outdoors. It combines a corrosion-resistant die-cast aluminum body, a tough tempered glass window, and tight silicone gaskets to achieve its IP65 waterproof rating, ensuring long-term reliability.

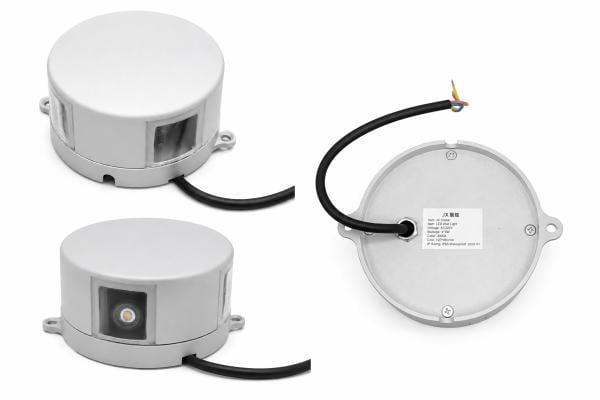

A Body Made of Metal, Not Plastic

The foundation of this light's durability is its housing. It's made from a solid piece of die-cast aluminum. This process creates a much stronger and more seamless body than stamping or welding thin sheets of metal. Critically, the aluminum also acts as a heat sink. It pulls thermal energy away from the sensitive LED chips and radiates it into the air, which is essential for achieving a 50,000-hour lifespan. The standard silver-grey finish is a tough, weather-resistant powder coat that prevents corrosion.

The Right Materials for the Job

Every component is chosen for outdoor performance. The light shines through a tempered glass window, not an acrylic or polycarbonate lens. Tempered glass offers superior optical clarity, is highly resistant to scratches from sand or wind-blown debris, and will not turn yellow or become brittle under years of sun exposure. Inside, all the seams are sealed with high-grade silicone gaskets. These gaskets remain flexible in both extreme heat and cold, maintaining a tight, waterproof seal year after year.

FAQ

What exactly is a "cross star" lighting effect?

It is a decorative effect created by a fixture with four lenses, each projecting a narrow beam of light. When mounted on a wall, these four beams combine to form a crisp, four-pointed star or cross shape.

What is the difference between the AC220V and DC24V versions?

The AC220V version connects directly to standard mains power, making it simple for small, standalone installations. The DC24V version requires a separate power supply but is safer and ideal for larger, centrally controlled systems using DMX.

How bright is a 12W cross star light?

While only 12 watts, the focused beams are very bright and effective for their purpose. With a narrow 5° beam, the effect is sharp and visible from over 6 meters away. It's an accent light, not a floodlight.

Can I get this light in a specific color like amber or blue?

Yes. It is available in standard single colors like warm white (3000K), neutral white (4000K), and yellow. For any other color, the DMX512 RGBW version allows you to mix and create millions of custom colors.

Is an IP65 rating sufficient for heavy rain?

Absolutely. IP65 means the fixture is completely dust-tight and can withstand low-pressure water jets from any direction. It is designed to handle rain, snow, and irrigation sprinklers without any issues.

How do I control the colors on the RGBW version?

The RGBW version uses the DMX512 protocol. You will need a DMX controller to send signals to the lights, which allows you to program scenes, change colors, and adjust brightness.

What is the best distance to install the light away from the wall?

This depends on the beam angle. For narrow beams (5°, 10°), a distance of 3-6 meters is recommended. For wider beams (30°), place it closer, around 1-2 meters from the wall, to get the best effect.

Is the housing color customizable?

The standard color is silver-grey. For large project orders, custom housing colors can often be produced to match a building's specific architectural finish.

Can these lights be used indoors?

Yes, they work perfectly well indoors and can be a great way to add decorative accents to lobby walls, corridors, or event spaces.

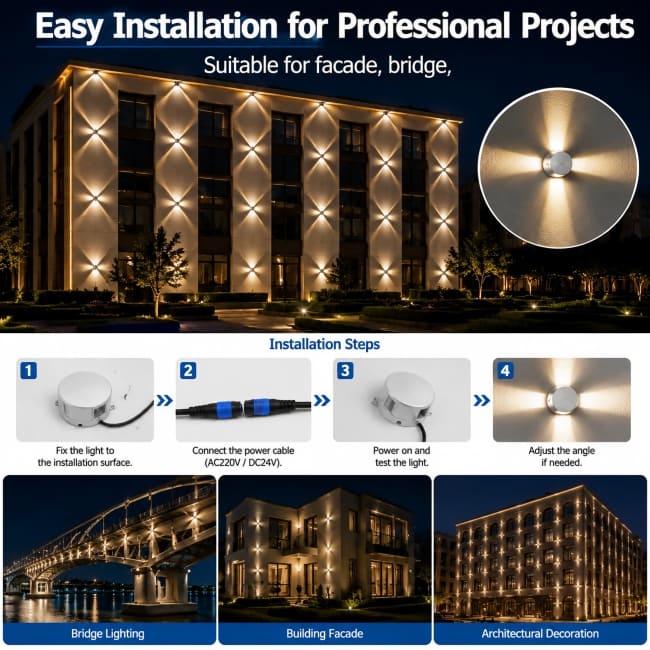

How is the light installed?

It is a simple surface-mounted installation. The fixture has a mounting bracket with two holes. You just need to screw it securely to the wall or ceiling surface.
