How to select the right linear lights and wall washers for a DMX512 facade project?

Choosing the right fixture for your facade feels like a high-stakes decision. Pick wrong, and the effect is lost or the budget is blown. I help clients make this choice every day.

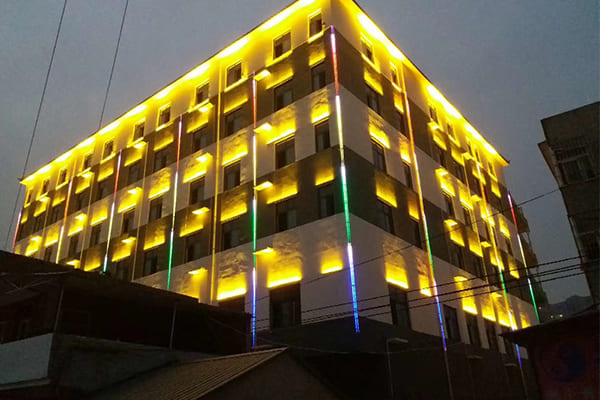

For a DMX512 project, use linear lights for crisp outlines and grazing. Use wall washers for broad, even illumination. Linear lights are lower power (10-12W) for accents, while wall washers are higher power (18-144W) to light up entire surfaces and floors.

That's the simple answer. But the real magic is in the details. The choice impacts your budget, your installation, and the final dynamic effect. Let's dig deeper into how to get it right for your specific project.

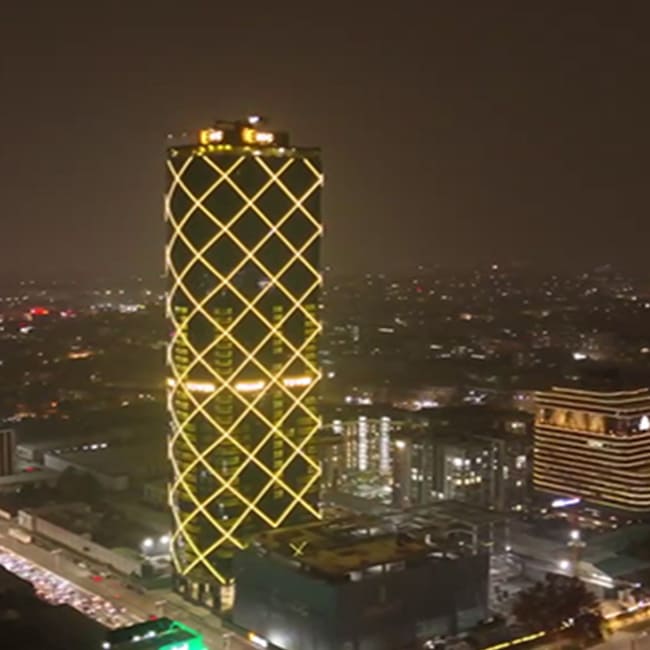

How to achieve complex dynamic effects[^1] using DMX512[^2] for facade lighting?

You want a facade that captures attention, not one with static, boring light. DMX512 can seem complicated. But it's just a powerful language that lets your lights talk and dance together.

To create dynamic effects, a DMX512 system sends commands from a central controller to each light. Every light or small group of lights has a unique address. This allows for individual control of color, brightness, and timing, creating scenes, fades, and chases.

The DMX512 System Explained

Think of DMX512 as an orchestra. The controller is the conductor, the lights are the musicians, and the DMX signal is the sheet music. Each musician (light fixture) knows exactly when to play its note (change color or intensity).

From Controller to Light

Your system starts with a DMX controller. This can be a physical console or software on a PC. The controller sends signals out in "universes." One universe can control up to 512 channels. Since an RGBW light[^3] needs 4 channels (Red, Green, Blue, White), you can control 128 of these lights per universe. The signal travels through DMX cables to the fixtures. Each fixture or a small section of a linear light is given a unique address. This is how the controller tells a specific light what to do.

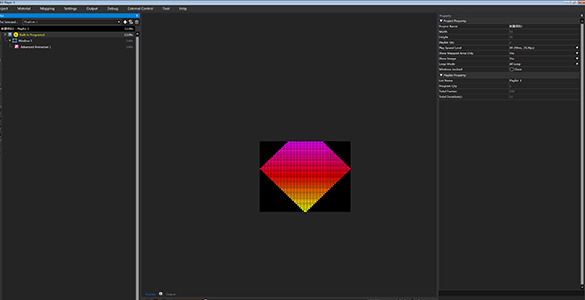

Programming Your Vision

The real creative work happens during programming. We use software to build scenes layer by layer. We can create slow, graceful color fades for a hotel facade. Or we can program fast-paced, energetic chases for a media facade on New Year's Eve. The possibilities are endless. It's about translating your architectural vision into a sequence of commands that the DMX system executes perfectly every night.

Component	Function	Why It Matters for Your Project
DMX Controller	The "brain" of the system. Sends out lighting commands.	Determines the complexity and scale of effects you can run.
DMX Decoder/Driver	Translates the DMX signal into power for the LEDs.	Must be matched with the fixtures for stable performance.
DMX Fixtures	The linear lights[^4] or wall washers[^5] receiving commands.	The number and type of fixtures define your DMX addressing plan.
DMX Cables	Carries the signal from the controller to the lights.	Using proper shielded cable is critical to avoid signal interference.

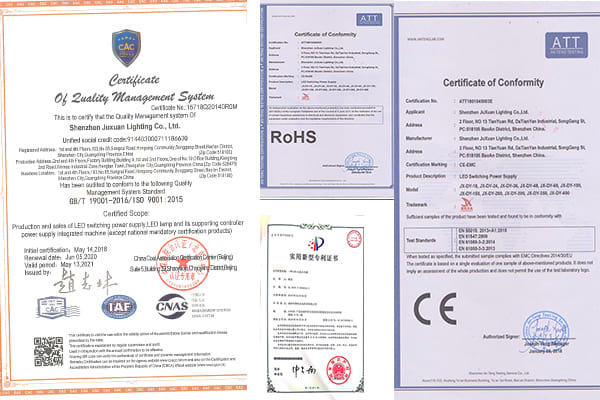

What certifications ensure the reliability and safety of outdoor linear and wall washer lights?

Your beautiful facade lighting fails after the first big storm. It's a project manager's worst nightmare. Certifications aren't just bureaucracy. They are your best insurance against failure, ensuring your investment lasts.

Key certifications for outdoor lights include IP rating[^6] (e.g., IP66) for water and dust protection, IK rating (e.g., IK08) for impact resistance, and surge protection (e.g., 10kV SPD). Also look for CE, RoHS, and UL for safety and material standards.

The Big Three: IP, IK, and Surge Protection

I see projects in all kinds of climates, from the salty air of Southeast Asia to the freezing winters of Russia. These three ratings are non-negotiable for me.

• IP Rating (Ingress Protection): This two-digit number tells you how well a fixture is sealed. The first digit is for solids (dust), and the second is for liquids (water). For outdoor facades, I never go below IP66. This means it's fully dust-tight and can withstand powerful water jets. For fixtures near pools or in rainy regions, IP67 or IP68 is even better.
• IK Rating (Impact Protection): This shows how much mechanical impact a fixture can handle. It's crucial for lights in public areas or places with risk of vandalism. An IK08 rating is a strong standard, meaning it can resist an impact of 5 joules.
• Surge Protection (SPD): Power grids can be unstable. Lightning strikes can happen. A good Surge Protection Device (SPD) is critical. For important projects, I insist on a 10kV SPD to protect the electronics inside the luminaire from power spikes.

Material and Compliance Certifications

Beyond performance, these marks confirm safety and environmental compliance. For projects in Europe, CE marking is mandatory. RoHS confirms that no hazardous substances were used. For North American projects, UL or ETL listings are the standard for electrical safety. These are essential for passing inspections and for your peace of mind.

Certification	What It Means	Why It's Crucial for Contractors & Owners
IP66/IP67	Protection against dust and powerful water jets/immersion.	Prevents water damage, reducing maintenance and replacement costs.
IK08/IK10	High resistance to mechanical impact.	Ensures durability in public spaces and reduces damage from accidents.
10kV SPD	Protects against electrical surges up to 10,000 volts.	Safeguards the electronics, extending fixture life in unstable grids.
CE/UL/ETL	Meets regional safety, health, and environmental standards.	Required for legal compliance and project sign-off.
RoHS	Restricts the use of specific hazardous materials.	Ensures environmental responsibility and worker safety.

How to get a custom lighting design[^7] and programming solution for your facade project?

Your building is unique. A standard, off-the-shelf product might not create the exact effect you envision. You worry that "custom" means slow and expensive, but it doesn't have to be.

Start by providing your architectural drawings (CAD) and a clear brief of the desired effect. A good partner will then create a free lighting simulation[^8] (DIALux[^9]), recommend custom optics[^10] or fixtures, and develop a programming storyboard for the DMX effects.

The Kyrgyzstan Story: A Custom Solution in Action

I remember a project in Kyrgyzstan. The client wanted to illuminate the top floor of a building. The standard choice would be a powerful 36W or 48W wall washer. However, they wanted a softer, more subtle effect, and they had a tight budget. They asked if we could use our 12W linear lights instead.

Normally, a 12W linear light creates a sharp line of light, not a wash. It's for outlining. But my team and I love a good challenge. We designed a new glass optic with a special 20x40 degree beam angle. This custom lens took the narrow beam of the linear light and spread it vertically. It gently washed the wall with just enough light, creating the exact subtle look the client wanted. They were thrilled with the result and the cost savings. This is the power of customization.

The Customization Process

It starts with your idea. You send us your plans and tell us what you want to achieve.

1. Simulation: We build a 3D model of your facade in DIALux software and test different fixtures and beam angles. This shows you exactly what the result will look like before you spend a single dollar.
2. Fixture & Optic Selection: Based on the simulation, we might recommend a standard product or suggest a custom solution like the one in Kyrgyzstan. This could mean a unique beam angle, a special color temperature, or even a custom-shaped housing.
3. Mockup: For critical projects, we can send samples for an on-site mockup[^11]. Nothing beats seeing the light on the actual building material.

Customization Option	What It Changes	Typical Project Application
Custom Beam Angle	The shape and spread of the light beam.	Creating a precise wash or graze on an irregular surface.
Custom Housing Color	The color of the fixture body (e.g., RAL colors).	Matching the fixture to the building facade to make it disappear by day.
Custom Bracket	The shape and size of the mounting bracket.	Solving difficult installation constraints on-site.
Custom DMX Program	The pre-loaded scenes and effects in the controller.	Delivering a plug-and-play system with client-approved dynamic content.

How can you scale a DMX512 facade lighting system for large architectural clusters?

Lighting one building is straightforward. Lighting a group of buildings or a long bridge is a different challenge. You worry about signal loss and complex wiring across a large area.

To scale a DMX512 system, use a master-and-sub-controller architecture. Employ DMX signal amplifiers[^12] every 100 meters to maintain signal integrity. Finally, plan your power distribution carefully with multiple power supply points to avoid voltage drop[^13] over long cable runs.

Master and Sub-Controller Architecture

For a large project, one controller isn't enough. We use a network of controllers. A single master controller[^14] holds the main program and keeps everything synchronized. It sends commands to multiple sub-controllers spread across the site. Each sub-controller is responsible for a specific section, like one building or one part of a bridge. This distributed approach is robust and manageable. It's how we run city-wide light shows where dozens of buildings act in perfect harmony.

Signal Integrity Over Long Distances

A standard DMX signal starts to weaken after about 100 meters of cable. On a large site, this is a major problem. The solution is simple: DMX signal amplifiers (also called DMX splitters). We place these devices along the cable run. They take the incoming signal, boost it back to full strength, and send it on its way. This ensures the last light in the chain receives the same clean signal as the first.

Power Management and Distribution

Just like the signal, power also drops over long distances (voltage drop). You cannot power a 200-meter-long facade from a single power supply. The lights at the far end would be dim or flicker. A proper power plan is essential. We calculate the load and place power supplies strategically along the installation. This ensures every fixture receives stable, correct voltage, which is key for performance and lifespan.

Scaling Problem	My Solution	Why It Works
Controlling thousands of lights	Master/Sub-Controller network.	Divides the project into manageable zones for easier programming and control.
Signal loss over 100m+	Install DMX signal amplifiers/splitters.	Regenerates the signal to ensure reliability across the entire site.
Voltage drop in long lines	Multiple, strategically placed power supplies.	Guarantees every fixture gets the correct voltage for stable operation.
Complex wiring topology	Use a combination of daisy-chain and star wiring.	Simplifies installation and troubleshooting by creating logical wiring groups.

Choosing the right light is just the beginning.

Selecting between a linear light and a wall washer is the first step. Making it reliable, dynamic, and scalable is where true expertise comes in. I hope this gives you the confidence to ask the right questions for your next DMX512 facade project.

---
